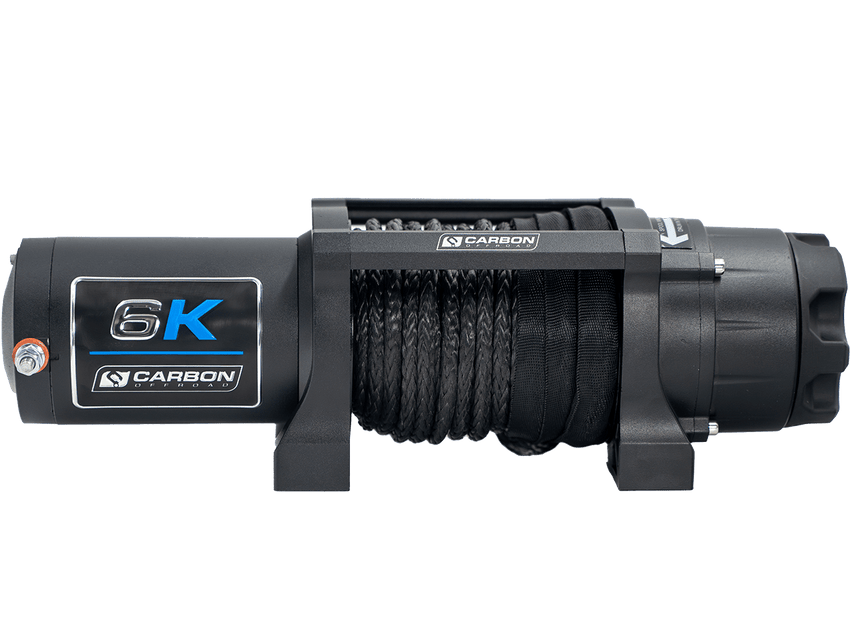

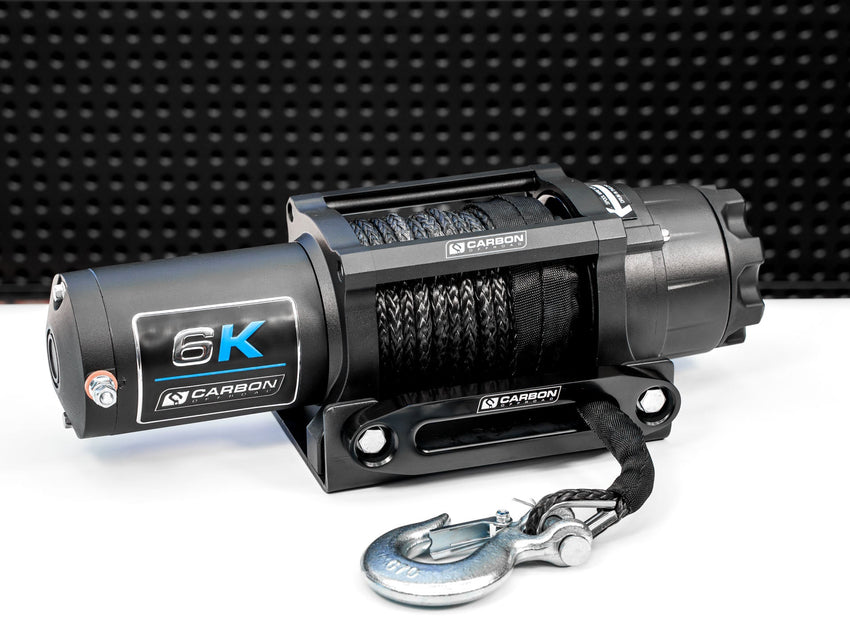

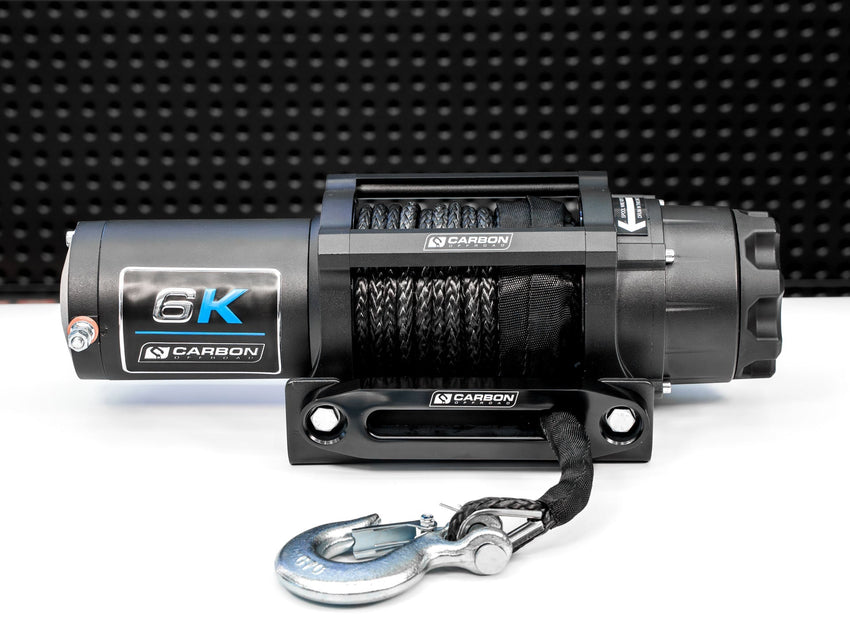

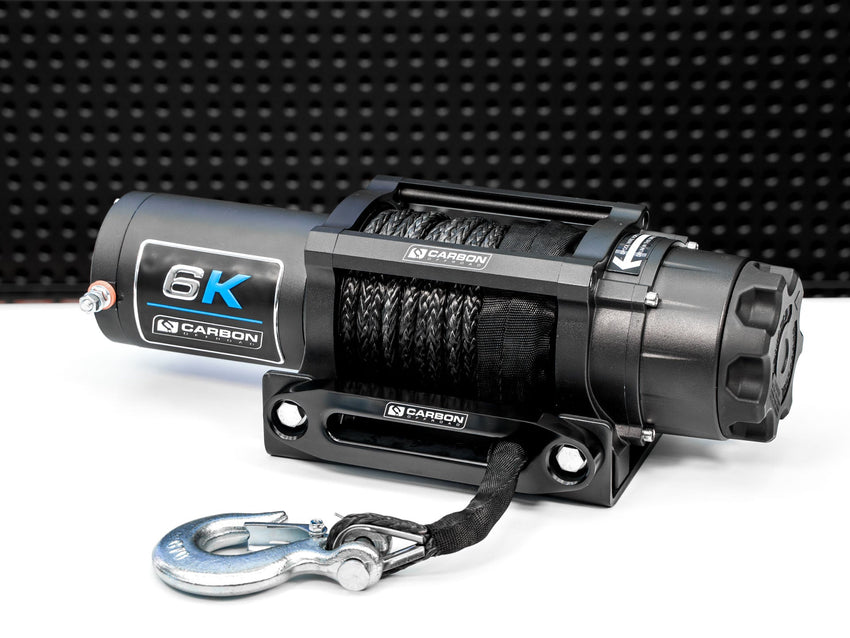

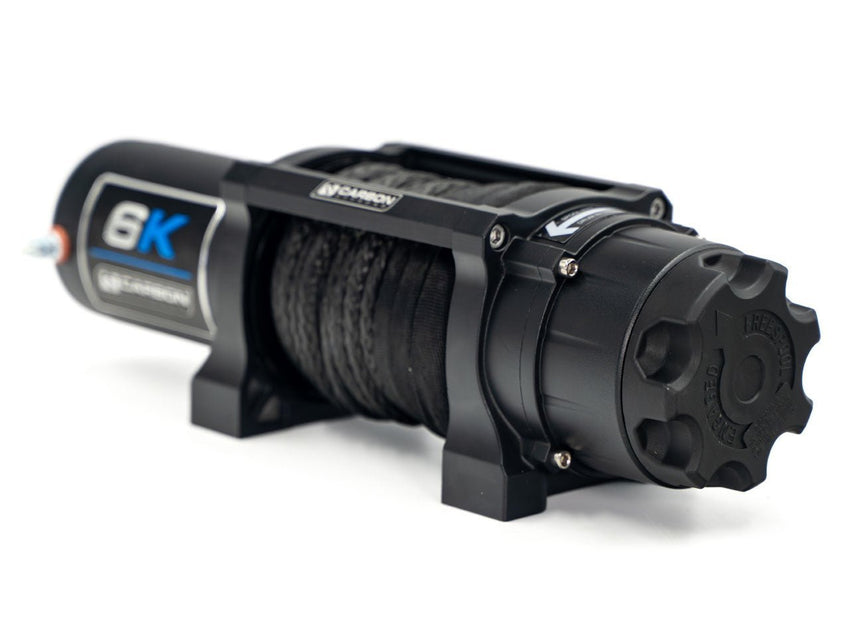

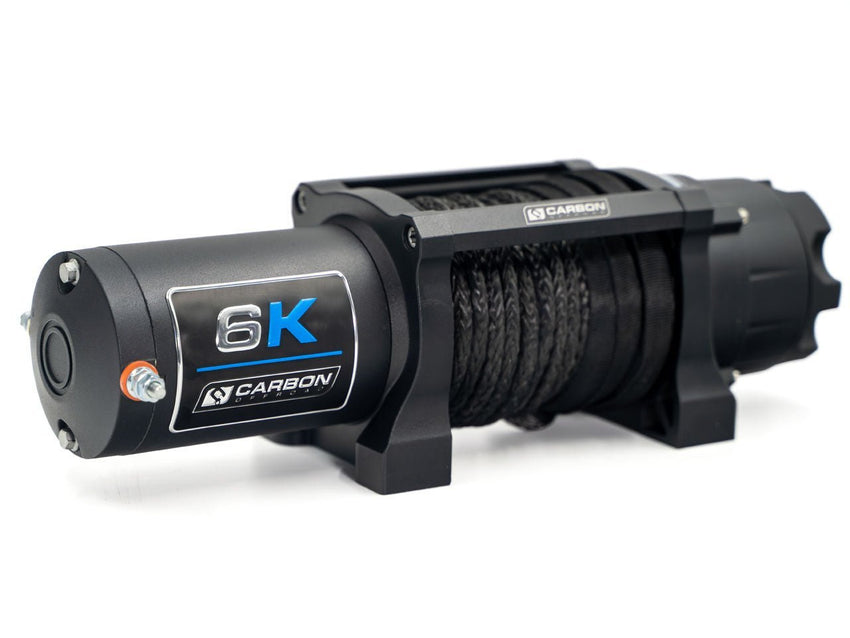

Carbon Offroad 6000lb ATV/Small 4X4 Winch 24V

Only 1 product left

Sale price $599.00 Regular price $700.00
Discounted amount Save 14%
Sale
Tax included

Pickup available at 463 Bushmead Road

Usually ready in 24 hours

SKU: CW-XD6-24V

Note: The manufacturer manual mentions a circuit breaker. This is not included with the product.

Looking for a reliable winch to handle tough jobs across your UTE, canopy setup, trailer, or compact 4x4? The Carbon Offroad CW-XD6 6000lb ATV Winch is a compact yet powerful solution, designed to make heavy lifting, recovery, and equipment loading simple. Whether you’re pulling a tinny up a steep ramp, winching a small 4x4 out of a bog, or sliding heavy gear into the back of your van, this winch delivers dependable performance every time.

At TL Spares, we stock only high-quality UTE accessories, canopy accessories, and 4x4 accessories. The CW-XD6 winch is no exception—engineered with strength, versatility, and ease of use in mind, making it a must-have addition to your setup.

Why Choose the Carbon Offroad 6000lb ATV Winch?

  • Sealed motor and geartrain – ensures flawless operation in extreme conditions.

  • Permanent magnet motor – provides heavy-duty torque for consistent pulling power.

  • Cam-activated free-spooling clutch – allows near-silent rope release with precision control.

  • Mechanical and dynamic braking – prevents rollback and keeps loads secure.

  • Compact design with integrated mounting plate – fits seamlessly into trailers, canopy builds, or UTE bars.

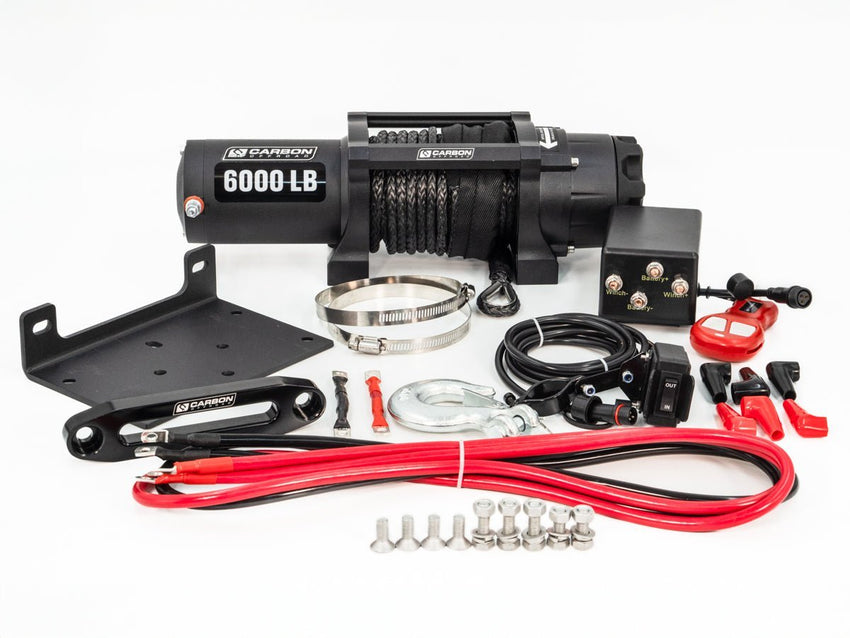

  • Wired and wireless remote included – versatile control options for work and play.

Perfect for:

  • Small UTEs and compact 4x4s such as the Suzuki Jimny

  • Canopy and van setups requiring easy equipment loading

  • Boat trailers and tinny retrieval

  • Farm and livestock applications, including gates and gear handling

Specifications – Carbon Offroad CW-XD6

  • Part Number: CW-XD6

  • Rated Line Pull: 6,000 lbs (2721kg) single-line

  • Motor: 24V DC 1.5HP

  • Geartrain: 3-Stage Planetary, 166:1 ratio

  • Rope: 13m x 6mm synthetic rope with aluminium hawse fairlead

  • Clutch: Cam activated, free spooling

  • IP Rating: IP66 (winch and controls, except remote switch)

  • Winch Dimensions: 350.5 x 115 x 120mm

  • Mounting Bolt Pattern: 76mm x 167mm

  • Shipping Weight: 12.2kg

24V DC Performance (First Layer)

  • No Load: 20.5 ft/min (6.2 m/min) – 15A

  • 1000 lbs (454kg): 16.1 ft/min (4.9 m/min) – 41A

  • 2000 lbs (907kg): 12.8 ft/min (3.9 m/min) – 68A

  • 3000 lbs (1361kg): 10.7 ft/min (3.3 m/min) – 84A

  • 4000 lbs (1814kg): 8.6 ft/min (2.6 m/min) – 116A

  • 6000 lbs (2721kg): 4.9 ft/min (1.5 m/min) – 160A
