DESCRIPTION
TYPE-X ™ PRO Registered Design Number 201814836
1.15KM BEAM DISTANCE
MARKET LEADING!
THE PRO STANDARD
You only need one glance to realize that the sky was the limit when designing the STEDI TYPE-X ™ PRO (Registered Design Number 201814836 & Registered Trademark)
Back in 2016, we released the original Type-X™ and completely disrupted the high performance driving light market. If you haven’t heard about the legendary reputation of V1.0 TYPE-X™, start by checking out the Youtube comparisons. With the introduction of our PRO Edition, we are yet again redefining the auxiliary driving light category. Our all-new Type-X™ PRO edition epitomizes our commitment to maximizing light output and reliability at levels that surpass the most respected players in the industry.
1.15KM BEAM THROW
Using the latest optic simulation modeling, the reflector geometry was tweaked over and over again to achieve a highly-functional beam pattern. No doubt the attention grabber is the unrelenting beam distance of 1.155km, however, the real strength of our Type-X™ PRO is in mid to long-range light distribution that really sets it apart. Astonishing beam throw coupled with a homogeneous wide beam will have you insist on driving only when the sun's down.
YOUR LIGHTS YOUR WAY.

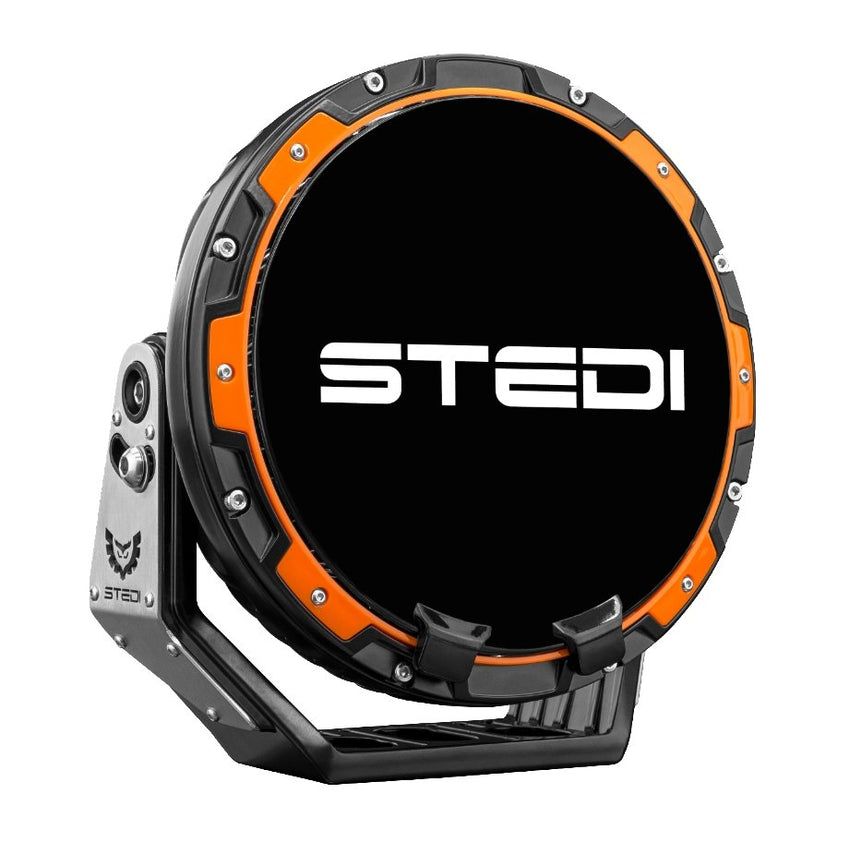

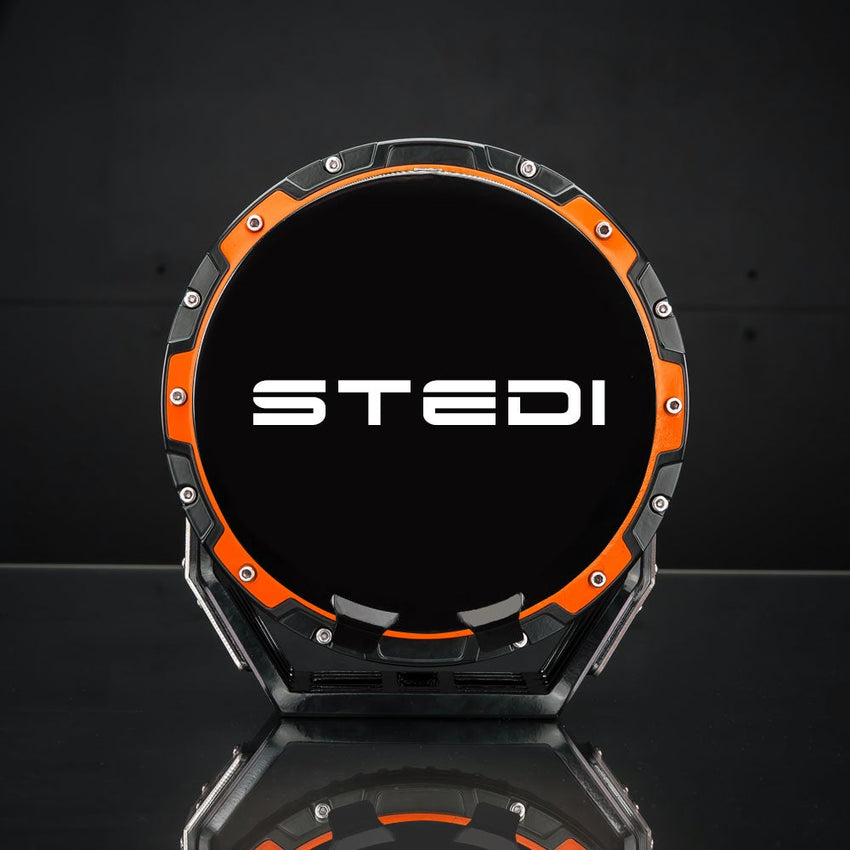

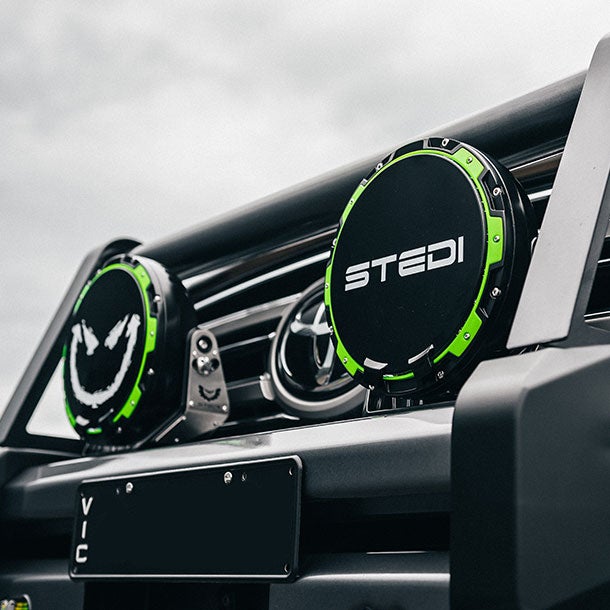

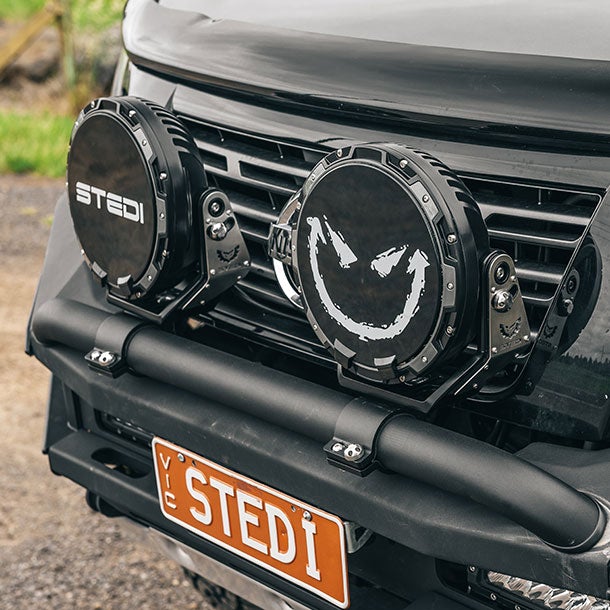

Pink? Green? Blue? Orange? Grey or all Black? The choice is yours. We've designed the inner ring fasteners to be independent of the main sealing structure, allowing you to change the colour that best suits. We've included grey and orange in the kit to get you started, or if you prefer all black, simply don't fit any ring at all. Our coloured filters and iconic STEDI smile covers are backward compatible too.
Additional colours sold separately.
DETAILS
ICONIC PERFORMANCEUsing the latest optic simulation modeling, the reflector geometry was tweaked over and over again to achieve a highly usable beam pattern. No doubt the attention grabber is the unrelenting beam distance of 1,155m (tested in pairs, combo beam), however, the real strength of our Type-X™ PRO is in mid to long light distribution that really sets it apart.
Our key focus was on driver confidence, by increasing the beam throw the driver has longer analysis time. We maximized driver comfort by smoothing out the beam eliminating shadows. We reduced the light wasted in unimportant zones like treetops and immediately in front of the vehicle. The result is a homogeneous, unrelenting beam that will support you well in any adventure. .

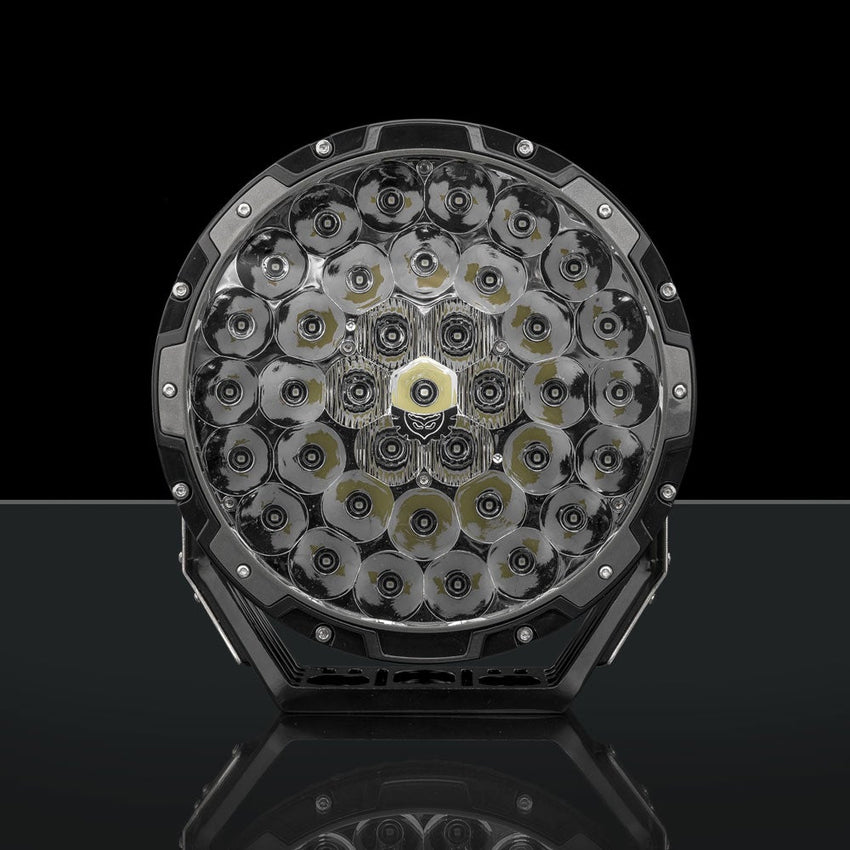

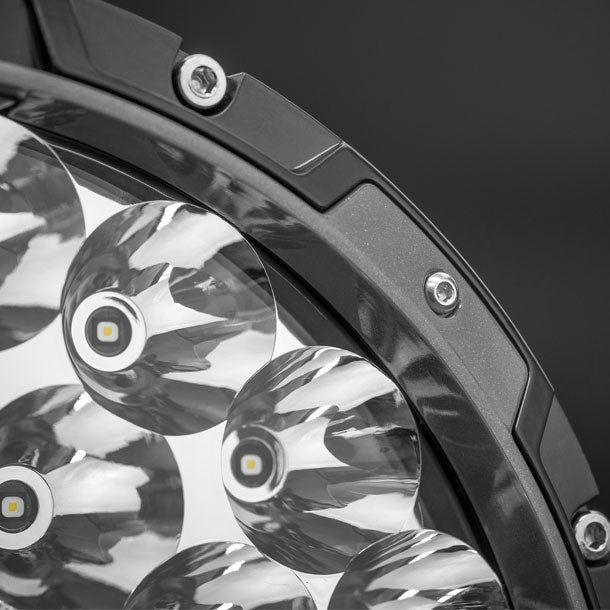

Unlike our competitors, each Type-X™ PRO lamp has 6 built-in flood reflectors for improved light distribution out into the road shoulders. The built-in wide-beam reflector eliminates the need to add any wide beam covers, which are not only less efficient at distributing light, covers also withhold valuable light transmission.
SPECIFICATIONS
LED | 37 x Oslon High-Flux LED |
RAW LUMENS | 26,270 (Pair) |
TESTED LUMENS | 15,870 (Pair) |
AMP DRAW | 10.4A @ 13.2v (each) |
POWER DRAW | 137W |
CANDELA |
1,334,025cd |
BEAM PATTERN | 6 x Spread 31 x Pencil Beam |
INGRESS PROTECTION | IP68 | Submersible up to 3m |
COLOUR TEMP (CCT) | 5700K |
VOLTAGE COMPATIBILITY | 12v & 24v |
LUMEN MAINTENANCE | 50,000 LM-80 |
WEIGHT | 2.860kg (each) |
PHOTOMETRIC DATA | |
10 M | 13,340 Lx |
50 M | 533 Lx |
200 M | 33 Lx |
300 M | 14 Lx |
400 M | 8 Lx |
1,000 M | 1.3 Lx |
1,155 M | 1 Lx |
WHAT’S IN THE BOX
- 2 x STEDI Type-X PRO LED Driving Lights
- 2 x Protective STEDI Black Out Covers
- 2 x Grey Colour Rings
- 2 x Orange Coloured Rings

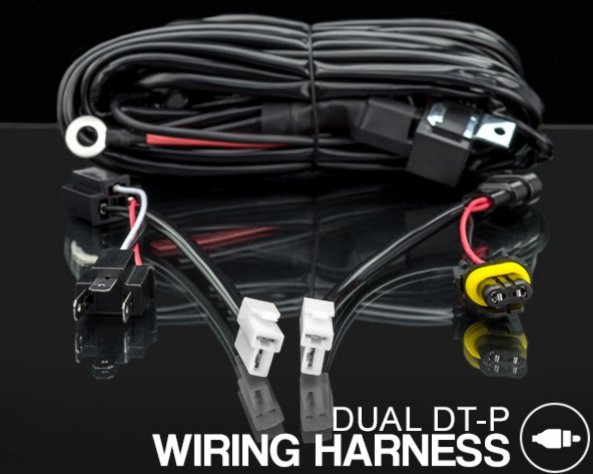

- 1 x Smart High Beam Wiring Harness DTP-2 Sealed Connectors, H4, HB3 adapter plugs to high beam. 60A Relay, Fuse, Switch
- Complete Stainless Steel fastener kit.
- Wiring & Fitting Instructions
